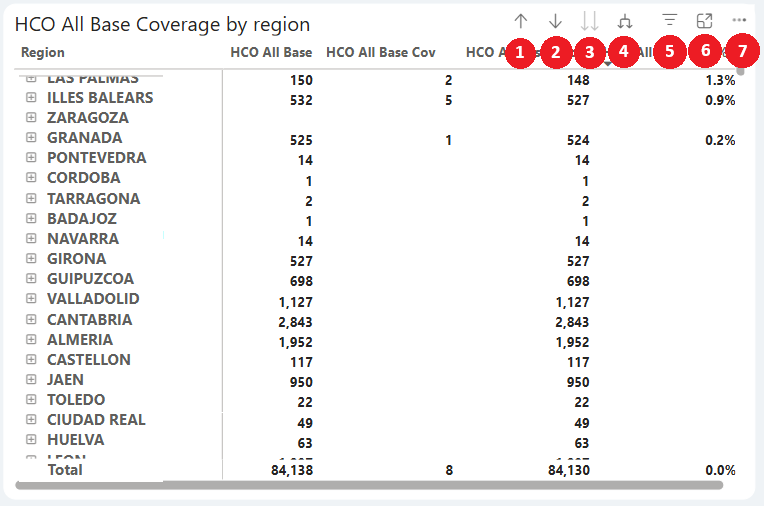

The Visuals Report Elements (Tables, Matrices and Charts) consist of the following function:
| Function Number | Function Name | Description |
|---|---|---|
| 1 | Drill up | Moves one level up in the data hierarchy. Example: District → Region |
| 2 | Go to the next level | Navigates to the next level in the hierarchy, replacing the current level. Example: Region → District (without showing regions) |
| 3 | Expand all down one level | Expands all parent rows and displays their child elements in the hierarchy. Useful for analyzing coverage or distribution across all regions at once. |
| 4 | Drill down | Enables drill-down mode. When active, clicking on a row drills into the next hierarchy level for that specific item. |
| 5 | Filters | Opens the visual-level filters pane. Filters applied here affect only this visual, not the entire page or report. |
| 6 | Focus mode | Expands the visual to full screen within the report page. |
| 7 | More options (⋯) | Opens the context menu with additional actions (depending on permissions) |

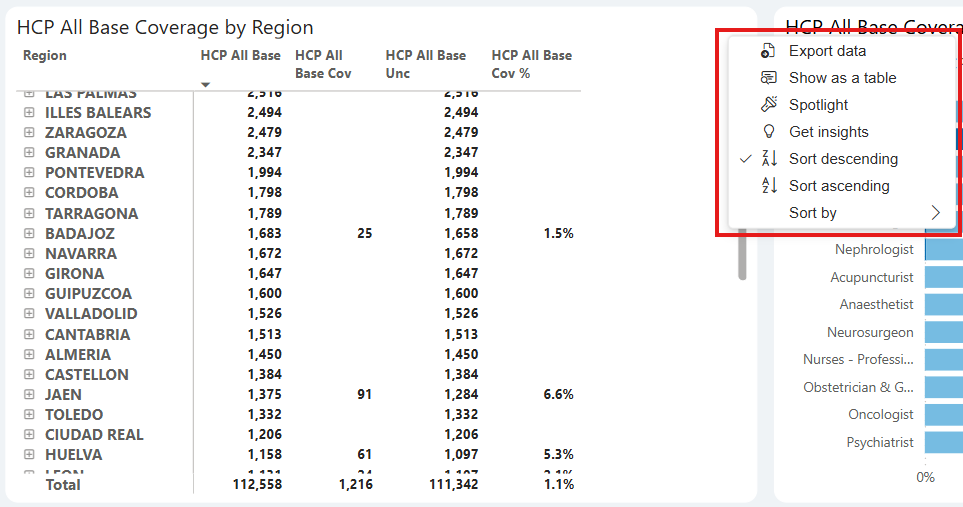

The context menu with additional actions (depending on permissions):

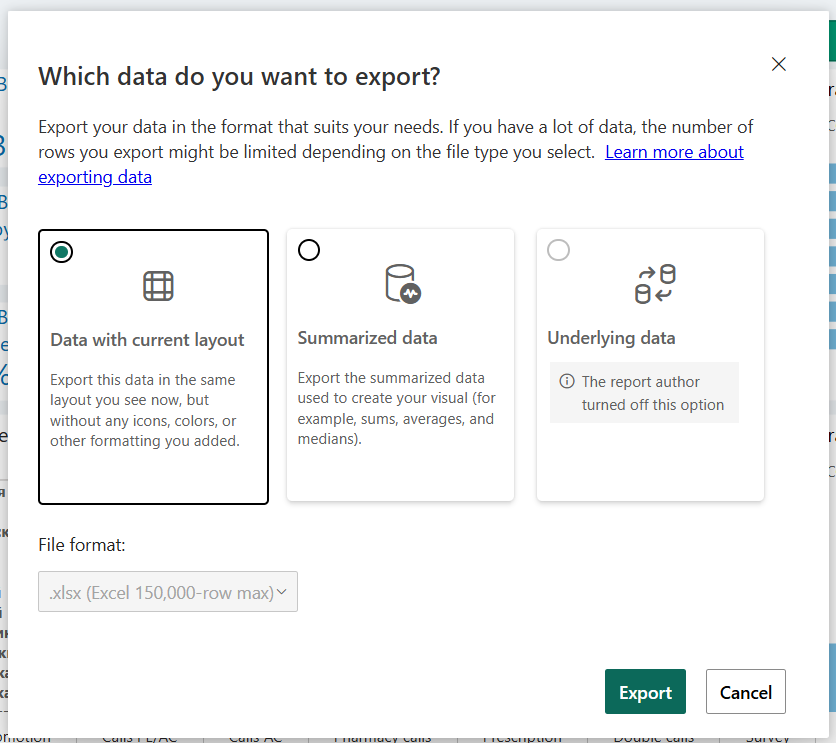

1 - Export data
Exports the data behind the visual to a file (usually .xlsx or .csv).
Summarized data – aggregated values as displayed in the visual
Underlying data – detailed row-level data (if enabled by the report author)
Typical use: offline analysis, data reconciliation, Excel validation.

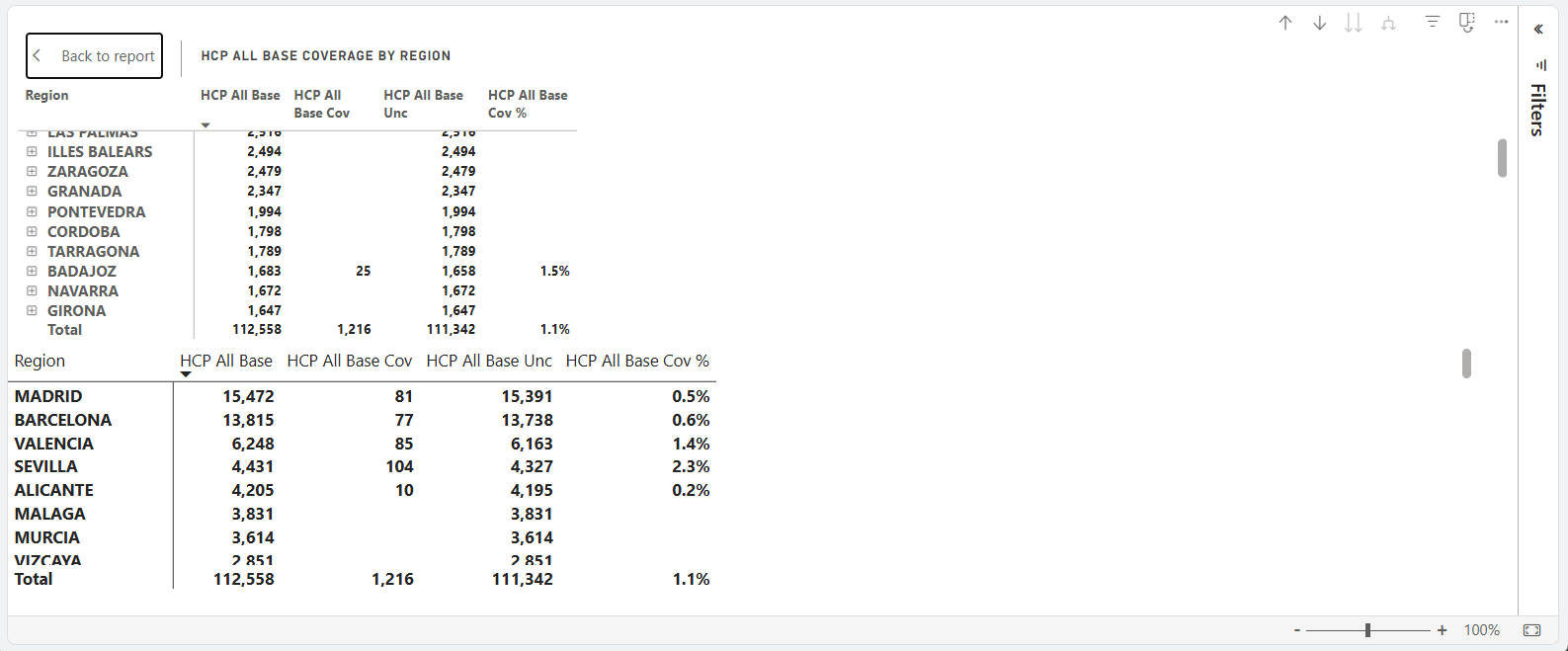

2 - Show as a table
Displays the visual data in a table format.
Preserves applied filters and context
Useful for reading exact numeric values behind charts
3 - Spotlight
Highlights the selected visual by dimming all other visuals on the page.
Improves focus during presentations
Does not change filters or data
4 - Get insights
Automatically analyzes the visual data using Power BI AI.
Identifies trends, patterns, and anomalies
Generates quick, AI-driven insights
Note: Availability depends on tenant and feature settings.
5 - Sort descending
Sorts the visual data from highest to lowest based on the selected field or measure.
6 - Sort ascending
Sorts the visual data from lowest to highest based on the selected field or measure.
7 - Sort by
Allows choosing which field or measure is used for sorting.
Useful when multiple measures are present in the visual
