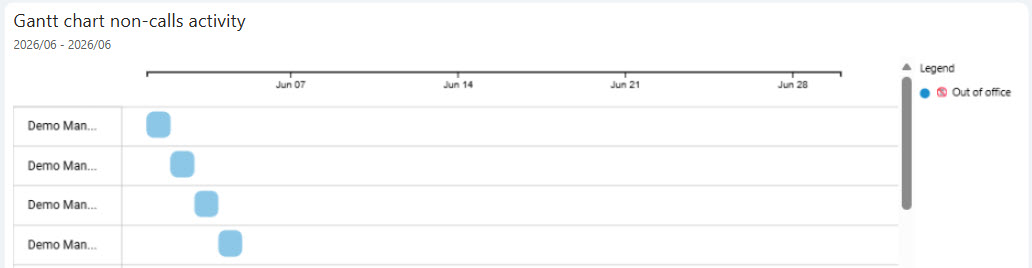

The Gantt chart non-calls activity visualizes non-call activities on a timeline for the selected reporting period. It helps users see when each activity was planned or completed and how non-call activities are distributed across employees and dates.
Business Questions
The Gantt chart non-calls activity helps answer the following business questions:
- Which employees have non-call activities during the selected period?
- On which dates were non-call activities performed?
- How are non-call activities distributed across the month?
- Are activities concentrated on specific days or weeks?
- Which activity types are displayed on the timeline?
- What is the status and duration of a selected non-call activity?
Measure Details

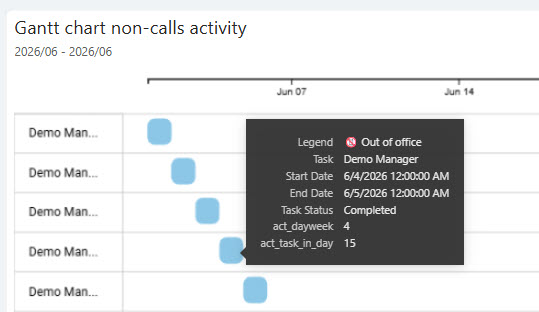

To display detailed information about a selected activity, hover your mouse over the activity marker in the chart. The tooltip shows the related measures and attributes.
- Legend — the activity type displayed in the chart, for example Out of office.
- Task — the employee or task name related to the activity.
- Start Date — the start date and time of the activity.
- End Date — the end date and time of the activity.
- Task Status — the current status of the activity, for example Completed.
- act_dayweek — the day-of-week value used in the chart calculation.
- act_task_in_day — the activity sequence or position within the selected day.
Example:
Legend: Out of office
Task: Demo Manager
Start Date: 6/4/2026 12:00:00 AM
End Date: 6/5/2026 12:00:00 AM
Task Status: Completed
act_dayweek: 4
act_task_in_day: 15
This means that the selected activity is an Out of office non-call activity for Demo Manager, started on June 4, 2026, ended on June 5, 2026, and has the status Completed.
